Double Elephant H Frame Power press also known as Pillar Type Power Presses comes in Mechanical & pneumatic clutch. This Inclinable Type H Frame Power Press manufactured by Rattan Machine Tools is most popular in Automotive Industries, Scaffolding, Fasteners & Forging Industries for high speed and break free operation. The Geared H Frame Power Press is offered with single point suspension and non-inclinable single action press. The Power Press is duly stress relieved and available in steel plate fabricated construction. Beside Pillar type Power Presses we also Manufacture High Speed power press, Two Point Power Press & in SPM Power Press.

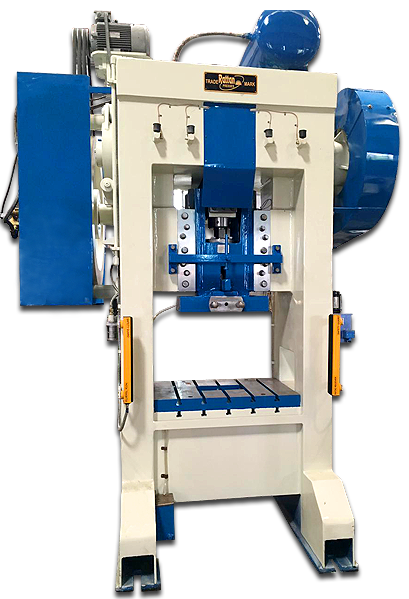

H-FRAME PNEUMATIC HIGH SPEED GEARED MACHINE

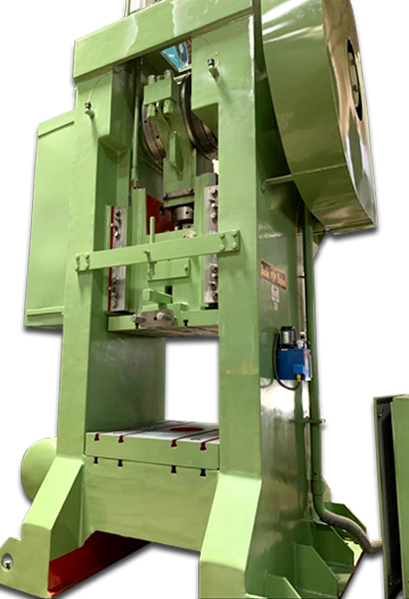

H-FRAME SINGLE POINT PNEUMATIC BIG SIZE POWER PRESS MACHINE
TECHNICAL SPECIFICATION OF H-FRAME POWER PRESS
|
Name
|
RMT-160
|
RMT-200
|
RMT-250
|
RMT-300
|
RMT-400
|
|||||||
|
Model
|
S
|
H
|
S
|
H
|
S
|
H
|
S
|
H
|
S
|
H
|
||
| Capacity | Ton | 160 | 200 | 250 | 300 | 400 | ||||||
| Rated Tonnage Point | Mm | 6 | 3 | 6 | 3 | 7 | 3 | 7 | 3 | 7 | ||
| Stoke | Mm | 180 | 130 | 250 | 150 | 280 | 170 | 300 | 170 | 300 | ||
| Stroke Per Minute | S.P.C | 30-55 | 40-85 | 20-50 | 35-70 | 20-40 | 30-60 | 20-35 | 30-50 | 20-30 | ||
| Die Height | Mm | 450 | 400 | 500 | 450 | 550 | 450 | 550 | 450 | 550 | ||
| Slide Sdjustment | Mm | 100 |
120
|
120
|
120
|
120
|
||||||
| Slide Area | Mm | 1600×650 | 1850×750 | 2100×900 | 2200×900 | 3100×1000 | ||||||
| Bolster Area | Mm | 1800×760 | 2200×940 | 2500×1000 | 2500×1000 | 3200×1000 | ||||||
| Side Opening | Mm | 700×450 | 900×600 | 900×600 | 900×600 | 900×600 | ||||||
| Main Motor | Kw | 15 | 18 | 22 | 30 | 30 | ||||||
| Slide Adjust Device | Kw X P | 0.75×4 | 0.75×4 | 1.5×4 | 1.5×4 | 1.5×4 | ||||||
| Air Pressure | Kg/Cm2 | 5 | 5 | 5 | 5 | 5 | ||||||
